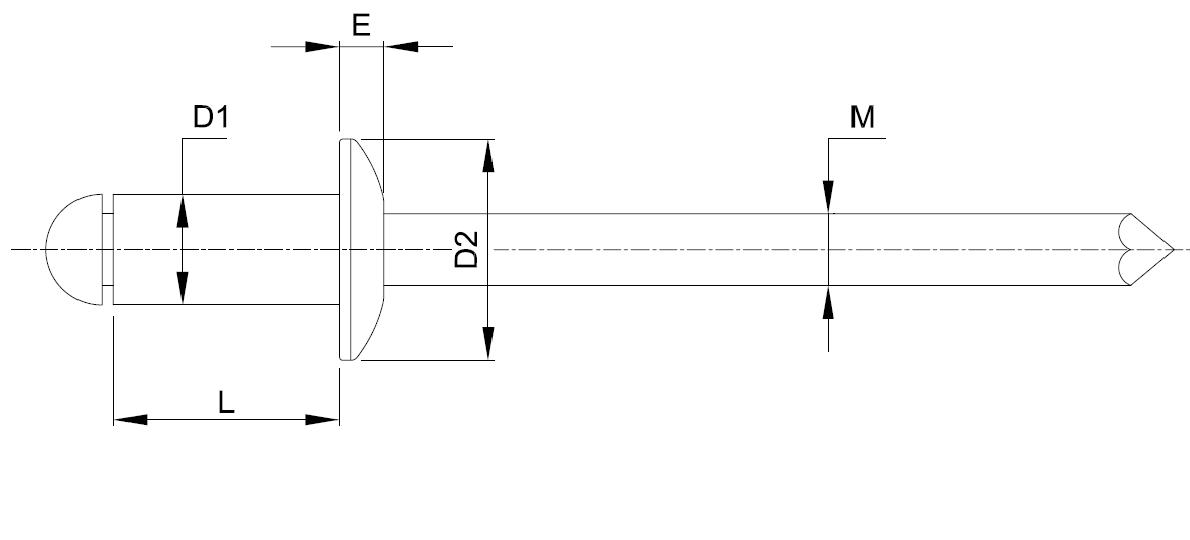

編號 | 直徑 D1 | 帽緣直徑 D2 | 長度 L | Grip Range |
---|---|---|---|---|
AS2458 | 2.4 | 4.30-5.03 | 5.8 | 0.5-3.2 |
AS2475 | 2.4 | 4.30-5.03 | 7.5 | 2.5-3.5 |
AS2489 | 2.4 | 4.30-5.03 | 8.9 | 3.2-6.4 |
AS325 | 3.2 | 5.8-6.65 | 5 | 0.5-2.5 |
AS3264 | 3.2 | 5.8-6.65 | 6.4 | 0.5-3.0 |
AS3275 | 3.2 | 5.8-6.65 | 7.5 | 3.0-3.8 |
AS3285 | 3.2 | 5.8-6.65 | 8.5 | 3.8-5.0 |
AS3296 | 3.2 | 5.8-6.65 | 9.6 | 5.0-6.5 |
AS32114 | 3.2 | 5.8-6.65 | 11.4 | 8.5-8.5 |
AS32127 | 3.2 | 5.8-6.65 | 12.7 | 8.5-10 |
AS3214 | 3.2 | 5.8-6.65 | 14 | 10-12 |
AS3216 | 3.2 | 5.8-6.65 | 16 | 12-13 |
AS3219 | 3.2 | 5.8-6.65 | 19 | 13-15 |
AS3222 | 3.2 | 5.8-6.65 | 22 | 15-18 |
AS3225 | 3.2 | 5.8-6.65 | 25 | 18-21 |
AS4064 | 4.0 | 7.0-8.33 | 6.4 | 2.0-4.0 |
AS408 | 4.0 | 7.0-8.33 | 8 | 3.0-4.2 |
AS4096 | 4.0 | 7.0-8.33 | 9.6 | 4.2-6.2 |
AS40114 | 4.0 | 7.0-8.33 | 11.4 | 6.2-8.2 |
AS4012 | 4.0 | 7.0-8.33 | 12 | 8.2-9.5 |
AS40127 | 4.0 | 7.0-8.33 | 12.7 | 8.2-10 |
AS40147 | 4.0 | 7.0-8.33 | 14 | 9.5-11 |
AS4016 | 4.0 | 7.0-8.33 | 16 | 11-12.5 |
AS4019 | 4.0 | 7.0-8.33 | 19 | 12.5-16 |
AS4022 | 4.0 | 7.0-8.33 | 22 | 16-18 |
AS4025 | 4.0 | 7.0-8.33 | 25 | 18-21 |
AS4864 | 4.8 | 8.5-10 | 6.4 | 0.5-3.2 |
AS488 | 4.8 | 8.5-10 | 8 | 3.2-4.2 |
AS4896 | 4.8 | 8.5-10 | 9.6 | 4.2-6.0 |
AS4812 | 4.8 | 8.5-10 | 12 | 6.0-9.0 |
AS48127 | 4.8 | 8.5-10 | 12.7 | 6.0-9.5 |
AS4814 | 4.8 | 8.5-10 | 14 | 9.5-11.5 |
AS4816 | 4.8 | 8.5-10 | 16 | 11.5-12.5 |
AS4819 | 4.8 | 8.5-10 | 19 | 12.5-16 |
AS4822 | 4.8 | 8.5-10 | 22 | 15-17 |
AS4825 | 4.8 | 8.5-10 | 25 | 17-19 |
AS4828 | 4.8 | 8.5-10 | 28 | 19-22 |
AS4830 | 4.8 | 8.5-10 | 30 | 22-24 |
AS4835 | 4.8 | 8.5-10 | 35 | 24-26 |
AS6410 | 6.4 | 11.5-13.34 | 10 | 4.2-6.2 |
AS6412 | 6.4 | 11.5-13.34 | 12 | 6.2-9.5 |
AS6416 | 6.4 | 11.5-13.34 | 16 | 9.5-12 |
AS6419 | 6.4 | 11.5-13.34 | 19 | 12-15 |
AS6422 | 6.4 | 11.5-13.34 | 22 | 15-18 |
AS6425 | 6.4 | 11.5-13.34 | 25 | 18-21 |
*鋁鐵大帽:直徑3.2mm 分為8mm & 10mm
*鋁鐵大帽:直徑4.0mm 分為10mm & 12mm
*鋁鐵大帽:直徑4.8mm 分為12mm & 14mm
