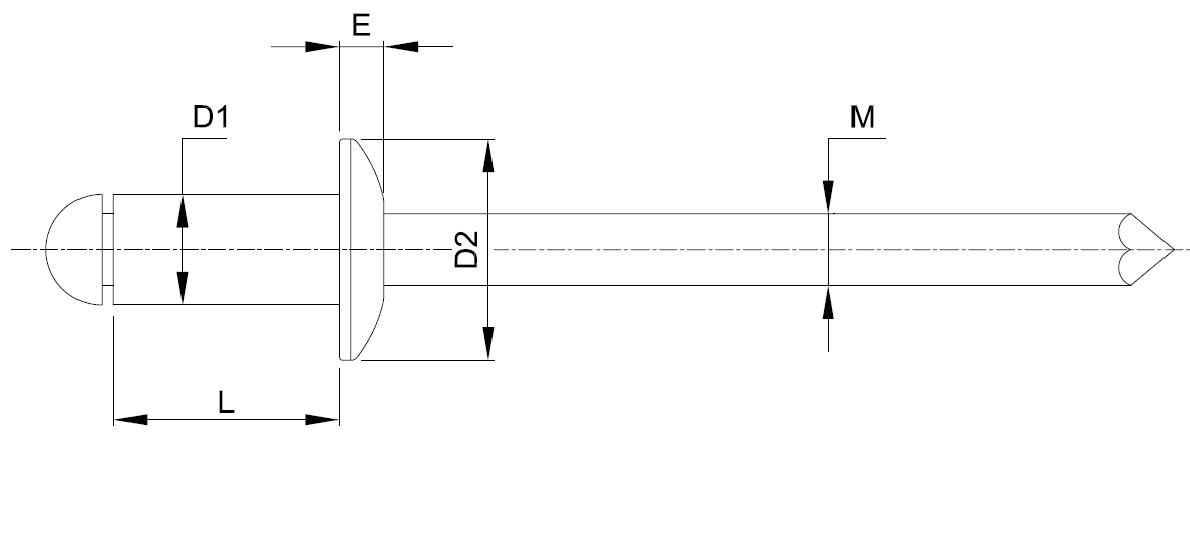

編號 | 直徑 D1 | Hole Size | 帽緣 D2 | 長度 L |
---|---|---|---|---|
SS3258 | 3.2 | + 0.1~0.2 | 5.8-6.65 | 5.8 |
SS3264 | 3.2 | + 0.1~0.2 | 5.8-6.65 | 6.4 |
SS3280 | 3.2 | + 0.1~0.2 | 5.8-6.65 | 8.0 |
SS32102 | 3.2 | + 0.1~0.2 | 5.8-6.65 | 10.2 |
SS32115 | 3.2 | + 0.1~0.2 | 5.8-6.65 | 11.5 |
SS32125 | 3.2 | + 0.1~0.2 | 5.8-6.65 | 12.5 |
SS32161 | 3.2 | + 0.1~0.2 | 5.8-6.65 | 16.1 |
SS4064 | 4.0 | + 0.1~0.2 | 7.0-8.33 | 6.4 |
SS4074 | 4.0 | + 0.1~0.2 | 7.0-8.33 | 7.4 |
SS4086 | 4.0 | + 0.1~0.2 | 7.0-8.33 | 8.6 |
SS40102 | 4.0 | + 0.1~0.2 | 7.0-8.33 | 10.2 |
SS40120 | 4.0 | + 0.1~0.2 | 7.0-8.33 | 12.0 |
SS40134 | 4.0 | + 0.1~0.2 | 7.0-8.33 | 13.4 |
SS40160 | 4.0 | + 0.1~0.2 | 7.0-8.33 | 16.0 |
SS40180 | 4.0 | + 0.1~0.2 | 7.0-8.33 | 18.0 |
SS4864 | 4.8 | + 0.1~0.2 | 8.5-10.0 | 6.4 |
SS4880 | 4.8 | + 0.1~0.2 | 8.5-10.0 | 8.0 |
SS48102 | 4.8 | + 0.1~0.2 | 8.5-10.0 | 10.2 |
SS48110 | 4.8 | + 0.1~0.2 | 8.5-10.0 | 11.0 |
SS48127 | 4.8 | + 0.1~0.2 | 8.5-10.0 | 12.7 |
SS48145 | 4.8 | + 0.1~0.2 | 8.5-10.0 | 14.5 |
SS48161 | 4.8 | + 0.1~0.2 | 8.5-10.0 | 16.1 |
SS48180 | 4.8 | + 0.1~0.2 | 8.5-10.0 | 18.0 |
SS64100 | 6.4 | + 0.1~0.2 | 11.5-13.34 | 10 |
SS64120 | 6.4 | + 0.1~0.2 | 11.5-13.34 | 12 |
SS64145 | 6.4 | + 0.1~0.2 | 11.5-13.34 | 14.5 |
SS64160 | 6.4 | + 0.1~0.2 | 11.5-13.34 | 16.0 |
SS64190 | 6.4 | + 0.1~0.2 | 11.5-13.34 | 19.0 |
SS64250 | 6.4 | +0.1~0.2 | 11.5-13.34 | 25.0 |
